First boot

Bring-up runs ten steps in order. Each step isolates one subsystem, so a later step's reading means nothing while an earlier one still fails. Run the build for a step, compare the screen against its expect column, and read the if-not column only when it disagrees. docs/bringup.md holds the full reasoning behind every verdict; docs/bench-runbook.md holds the same steps as a bench operator's order of operations.

Before you start

need	why
A PS2 console, or Play! (no BIOS, CI's choice) or PCSX2 in software-renderer mode (needs your own BIOS, more accurate)	Steps 2, 3 and 6 depend on GS texel addressing and blend behaviour an inaccurate emulator gets wrong
The prebuilt ELFs from a green hw CI run, or a local make -C runtime/sample build per step (flags)	Each step is a separate ELF; only ps2ui_sample.elf looks like the finished UI, and it answers step 9 alone
examples/channel6/build/ui.uib	Steps 3, 5, 7 and 10 read its probe screen through conform.elf
A test-card blob from tools/make_testcard.py	Steps 6 and 8 read the alignment card, not either example blob
A fresh file name for every copy, sizes checked on the drive after copying	A stale ELF booted under an old name is the most common way to read the wrong build

This page needs the checkout and there is no no-clone lane for it. ps2ui vendor-runtime --starter gives an installed user a buildable project, which is enough for deploying, and it does not give them these: the channel-6 probe screen and the test card are the instruments each step is read against, not example content, and nothing in the wheel or the npm tarball produces either. A reader bringing up their own UI on their own console can still read a flat fill as a status, but not from the legend below: that one is runtime/sample/main.c's. The starter's main.c agrees on dark red (the blob failed to load) and olive (the upload ran out of VRAM), and differs on the third. It paints navy blue (#000080, not the steel blue #4080c0 of a passing step 1) when SCREEN= names a screen the blob does not have, deliberately, rather than falling back to screen 0 and looking like the flag was ignored, and it never paints magenta at all. Reading the sample's legend against a starter build turns that failure into "step 1 passed".

A screen filled edge to edge with one flat colour is never a UI. Blue means step 1 passed. Dark red means the blob failed to load. Olive means step 9's upload ran out of VRAM. Magenta means the boot flag named a screen absent from the blob. Read a flat fill live, not from a photograph: a phone renders saturated magenta as violet and lifts near-black to a visible maroon.

Steps 1-10

Every step below ends in one of three states. PASS means the property holds. FAIL means it does not, and the row says what to check next. VOID means the instrument itself could not answer, which is not a failure and not worth reading as one.

step	build	expect	if not
1 boot and clear	make -C runtime/sample MINIMAL=1	Solid blue (#4080c0), holds 30 seconds, then returns to the browser	Orange means byte-swapped RGBAQ; fix it before any later step. Black then return means the loop drew nothing. No return means it hung before drawing
2 solid quads, alpha blend	make -C runtime/sample PROBE=1	Clear, four corner brackets, six alpha columns with no seam in 1-5 and a seam in 6, then returns after 90 seconds	Column 6 with no seam is void, not a pass; it is the calibration. Missing rungs above 0x80 mean the blend unit needs gsKit_set_primalpha, not a rescaled alpha
3 CLUT and the CSM1 swizzle	make -C runtime/sample STATIC=1 SCREEN=probe UIB=../../examples/channel6/build/ui.uib (conform.elf)	Probe screen's IMAGE cell: a flat dark-teal bar with one bright-orange stripe hard against the right edge	No stripe anywhere is void; the stripe is the calibration. A stripe elsewhere names the failed palette bit. Add LINEAR_CLUT=1 (conform-linear.elf) to rule out double permutation
4 text tinting, TEX0.TFX	none; settled by source	Nothing to run. gsKit hardcodes TFX to MODULATE at every site, so tinting is already on	Not applicable; there is no ELF and no bench slot for this step
5 modulate colour domain	reuses step 3's conform.elf, MODULATE cell	Top two rows blank, third row legible	A wrong shade means the tint domain is wrong. Brighter text than its block means TEX0.TCC is discarding atlas alpha; compare NO_ALPHA=1 (conform-noalpha.elf)
6 texel and pixel centres	python3 tools/make_testcard.py testcard.uib --preview expected.png, then make -C runtime/sample STATIC=1 UIB=testcard.uib (testcard.elf); add PROBE6=1 (probe6.elf) to localise a texture-path fault	Wedge crisp at 1px, 2px and 4px; four colour-coded edge rules visible; four corner checkers crisp	Grey at 1px only is a real sampling fault. Grey at 1px and 2px is the panel's resolution limit, not a fault. All three grey reads nothing. On probe6.elf, column G's colour names the CLUT convention if a column seams
7 scissor nesting	reuses step 3's conform.elf, CLIP cell	Exactly one magenta square	Two squares means the scissor rect never reached the GS. None is void; the visible square is the calibration
8 interlace	reuses step 6's testcard.elf; watch live, do not photograph	The 1px rule flickers at 30 Hz; the 2px rule holds steady	Both steady is void; check gsGlobal->Field (GS_FRAME against GS_FIELD) before the panel. Both flickering means field order or a half-height framebuffer
9 VRAM pressure	make -C runtime/sample STATIC=1 (ps2ui_sample.elf, default UIB)	The full memcard UI draws	Solid yellow, held, is the VRAM preflight refusing; rebake with --vram-budget set to what your app actually leaves free. Black or nothing is a boot failure; re-run step 1 first
10 display aspect	reuses step 3's conform.elf, probe-aspect cell	Exactly one of gold, blue or green reads square; blue on 4:3 or pillarbox, green when the panel stretches to 16:9	Gold square means a screenshot, not a television. Bake with the aspect actually displayed: --mode ntsc16x9 for a stretching panel, --mode ntsc for 4:3 or pillarbox

Reading the probe

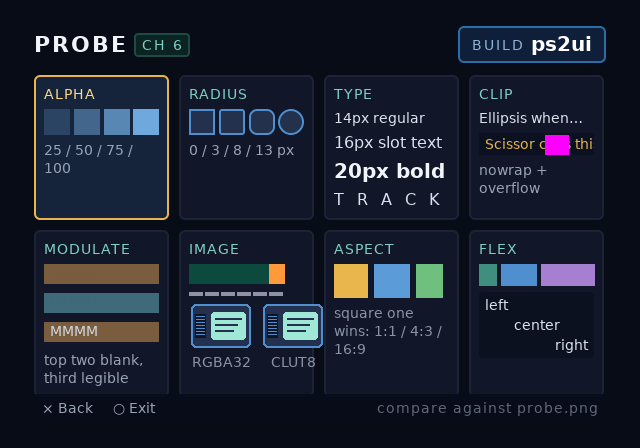

examples/channel6's probe screen is the conformance target every step above compares a console frame against. Its seven labelled cells fail in their own recognisable way, so a wrong cell narrows the search before a single line of source is read.

cell	step
ALPHA	2
RADIUS	6
TYPE	3, 4, 5
CLIP	7
IMAGE	3, 5
ASPECT	10
FLEX	none; layout geometry, not a numbered step

The texel-alignment test card carries steps 6 and 8 alone and shares neither screen with the probe:

tools/read_testcard.py and tools/read_probe6.py grade a capture of either card the same way an operator would: by contrast against a flat reference in the same frame, never by naming a colour. Both tools, and tools/make_testcard.py itself, ship a --self-test that proves the reader can fail before it grades a real photograph:

$ python3 tools/make_testcard.py --self-test
ok - 1px checker is pure black and white ([0, 255])
...
ok - and it is the colour a mushed checker becomes (128 vs 128)
PASS: 0 failure(s)
$ python3 tools/read_testcard.py --self-test
ok   - a correct card reads every rung CRISP
ok   - a card whose checkers averaged to grey reads MUSH, not CRISP
ok   - a mushed 1px rung alone still fails
ok   - and the coarser rungs are still read as patterned
ok   - a frame that is not the card reads VOID, not MUSH
read_testcard self-test: PASS (0 failure(s))

The fixes each fault above produced, and the bench readings that found them, are in Internals.
