Dynamic text¶

What it is¶

A slot is one line of text the console writes at runtime. Mark the element with data-slot and give the slot a name. The text inside the element becomes the placeholder, drawn until the app calls ps2ui_slot_set.

Everything except the string is decided at compile time. The slot's position, width, font, size, weight, letter-spacing, alignment, ellipsis policy and both colours travel in the blob. The runtime walks the baked glyph table. It composes quads with the pen the baker used, so runtime text matches the baked text beside it.

Reserve the bytes with data-slot-capacity. Leave it off and the slot gets 63 bytes.

Minimal example¶

From the tutorial's ui/library.html:

<span class="count" data-slot="count" data-slot-capacity="16">0 titles</span>

The app fills it each frame:

ps2ui_slot_set(&ui, "count", count_text);

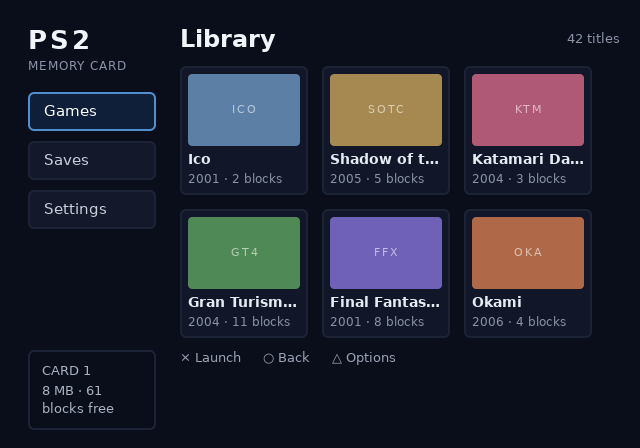

The memcard example does the same on its library screen. Rendering that screen with the slot set shows the runtime string in place of the baked one:

memcard library screen, root theme, 4:3, initial focus state, with the count slot set to "42 titles" instead of its baked placeholder "6 titles"

Reference table¶

attribute	effect
`data-slot="<name>"`	Turns the element's text into a runtime slot under that name. The name must be non-empty and unique across every screen in the blob.
`data-slot-capacity="<bytes>"`	Bytes the runtime reserves for the string, terminator excluded. Defaults to 63. Must fit a uint16.

Two runtime calls reach a slot. Both take the slot name and search the whole blob.

function	effect
`ps2ui_slot_set(ctx, name, text)`	Copies `text` into the slot, truncated at its capacity on a UTF-8 boundary. `NULL` restores the placeholder. `""` blanks the slot. Returns 1, or 0 for an unknown name.
`ps2ui_slot_get(ctx, name)`	Returns the runtime string when one is set, else the placeholder. Returns NULL for an unknown name.

The full signatures and the scope rules are on the C API reference.

Behaviour¶

What the blob carries¶

baked property	authored with	what the runtime does with it
position and width	the element's box in CSS	fixes the pen origin and the ellipsis budget
font, size, weight	`font-size`, `font-weight`	selects the baked glyph table
letter-spacing	`letter-spacing`	added between glyphs, alongside the kern pair
alignment	`text-align`	shifts the pen when the run is narrower than the box
ellipsis	`text-overflow: ellipsis`	cuts the run and appends U+2026
base and focus colour	`color` and `color` under `:focus`	picks the colour for the current focus state
capacity	`data-slot-capacity`	sizes the slot's buffer and bounds the copy

The slot's font entry carries every codepoint the metrics know, plus the ellipsis. Static text bakes only the glyphs it used. A slot cannot know its string at bake time, so it takes the whole charset. See text and fonts for the pen and the kern table both stages share.

A slot draws only while its screen is current. A slot whose focus node is hidden is skipped.

Truncation¶

ps2ui_slot_set copies at most capacity bytes, then drops a trailing partial UTF-8 sequence. Capacity counts bytes, not characters. A two-byte character costs two.

Text wider than the slot box is ellipsized when the box carries text-overflow: ellipsis. The cut lands on the last glyph that leaves room for the ellipsis and its kern pair. Without that property the whole run is drawn and the enclosing scissor clips it.

Names¶

Slot names resolve over the whole blob. ps2ui_slot_set walks every slot in the file and takes the first match. A name repeated on two screens would leave the second slot unreachable. The baker refuses that blob. Prefix per-screen readouts with the screen name, as runtime/sample/main.c does.

Slot names are not focus-node names and share no namespace with them. Refilling a row of a list is a slot write per row, driven by the list window.

Limits and errors¶

message	stage	cause	fix
`layout: <tag> line N: data-slot needs a name`	compile	`data-slot=""`	name the slot
`layout: <tag> line N: a data-slot element must contain exactly one text node (the placeholder), no child elements`	compile	an element child, or no child at all	move the markup outside the slot element
`layout: data-slot "<name>" placeholder wraps to N lines ...`	compile	the placeholder does not fit on one line	add `white-space: nowrap` or widen the box
`layout: duplicate data-slot name "<name>"`	compile	one document uses a name twice	rename one
`slot name '<n>' is on screen '<a>' and screen '<b>' ...`	bake	two screens share a name	prefix each with its screen
`slot '<name>': capacity <n> does not fit the format's uint16 capacity field.`	bake	capacity above 65535	lower it
`slot "<name>": letter-spacing <v>px does not fit the format's i16 field (-32768..32767px).`	bake	`letter-spacing` outside i16	lower it

A placeholder that wraps stops the compile:

$ ps2ui-layout err-wrap.html wrap.css --fonts fonts/fonts.json -o e2.json
error: layout: data-slot "count" placeholder wraps to 5 lines — slots are single-line; add white-space: nowrap or widen the box

A name shared by two screens stops the bake:

$ ps2ui-bake library.json saves.json -o two.uib --fonts fonts/fonts.json
ps2ui-bake: slot name 'count' is on screen 'library' and screen 'saves'; slot names resolve over the whole file, so only the first would ever be reachable from the app

Capacity is not clamped. The baker records what the markup asked for and refuses only what the format cannot hold:

$ ps2ui-bake big.json -o big.uib --fonts fonts/fonts.json
  runtime tables: 1 textures, 1 CLUTs, 1 slots, 1 screens
error: slot 'count': capacity 70000 does not fit the format's uint16 capacity field.

The host previewer diverges from the console in three ways. preview.render(uib, slot_text=...) draws the string it is handed without applying the capacity, so a render can show text the console would cut. It treats an empty override as no override and draws the placeholder, where ps2ui_slot_set(ctx, name, "") blanks the slot. The ps2ui serve slot box caps input at capacity UTF-16 code units, while the console truncates at capacity bytes. Typing into that box is covered on the previewer page.
