CRT linter

Eight rules read every compiled screen and report what a desktop preview cannot show. Overscan crops the edges. Interlacing makes a 1px line shimmer. Composite video smears saturated red.

What it is

The linter runs inside ps2ui-layout on every compile. No flag turns it on.

Each rule reads the display list and the focus graph after layout. Slot text is linted too, because a data-slot placeholder is spliced back into the list the linter sees.

Every rule is a warning. A warning goes to stderr as one warning: <rule>: <message> line and changes no output file. Pass --strict to turn any warning into exit 1.

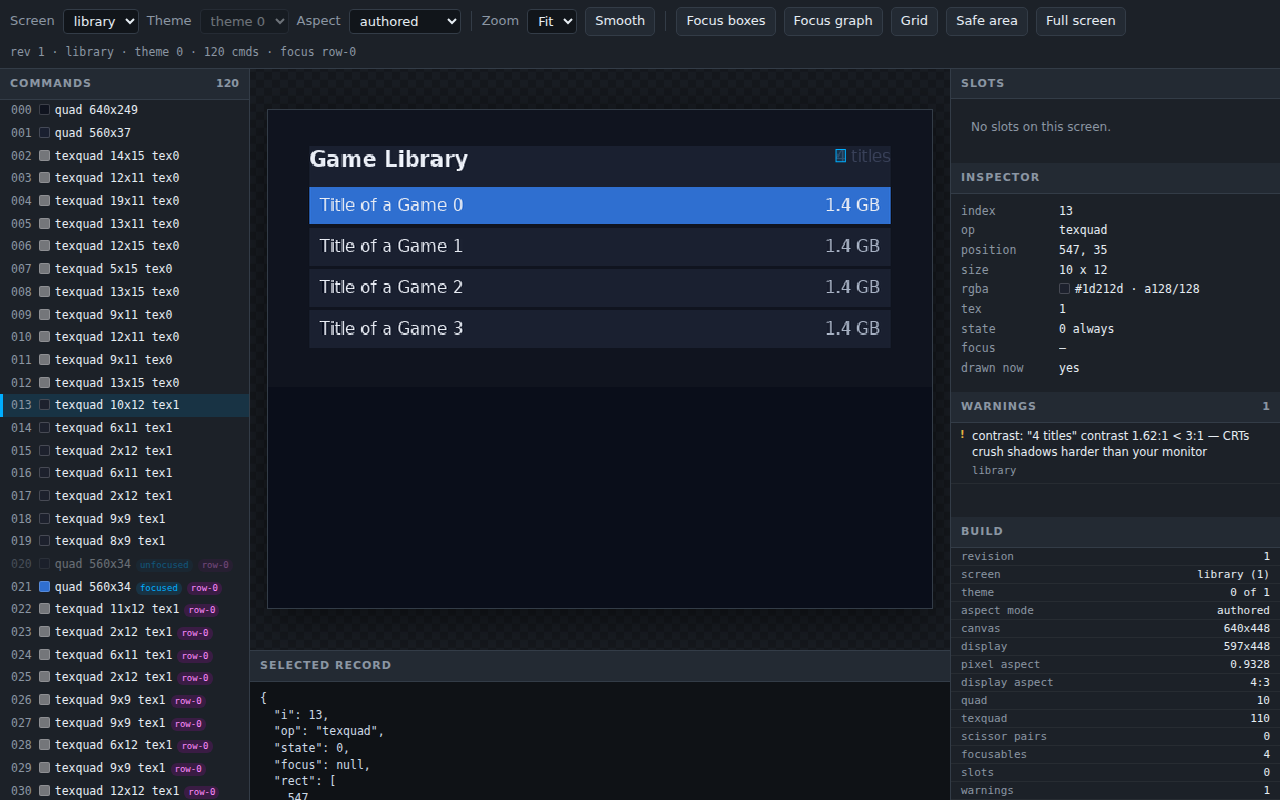

ps2ui serve lists the same warnings beside the frame they came from.

Minimal example

The demo project pairs library.html with library.css. Its header count is painted in a colour close to the panel behind it.

.header  { flex-direction: row; padding-bottom: 12px; background: var(--panel); }
.count   { font-size: 16px; color: #39425a; }

ps2ui-layout ui/library.html ui/library.css --fonts fonts/fonts.json -o build/library.json

warning: contrast: "4 titles" contrast 1.62:1 < 3:1 — CRTs crush shadows harder than your monitor
ps2ui-layout: 24 paint commands, 4 focusables -> build/library.json

The fix is the colour, not the rule. Point .count at the sheet's dim ink.

.count   { font-size: 16px; color: var(--dim); }

ps2ui-layout ui/library.html ui/library.css --fonts fonts/fonts.json --strict -o build/library.json

ps2ui-layout: 24 paint commands, 4 focusables -> build/library.json

Reference table

One screen trips every rule at once. Save it as ui/kitchen.html and ui/kitchen.css, with any PNG beside it as ui/cover.png.

<screen name="kitchen">
  <div class="screen">
    <p class="tiny">Fine print</p>
    <div class="hair"></div>
    <div class="redbox"></div>
    <div class="dim"><p class="ink">Nearly invisible</p></div>
    <p class="cjk">設定</p>
    <div class="chip" id="chip" focusable autofocus>OK</div>
    <div class="wide" id="wide" focusable>Overhang</div>
    <div class="round"></div>
    <img src="cover.png">
  </div>
</screen>

.screen  { flex-direction: column; background: #0a0e1a; gap: 4px; }
.tiny    { font-size: 9px; color: #f2f5fa; }
.hair    { height: 1px; background: #f2f5fa; }
.redbox  { height: 8px; background: #e01020; }
.dim     { flex-direction: column; background: #808080; height: 24px; }
.ink     { font-size: 16px; color: #858585; }
.cjk     { font-size: 18px; color: #f2f5fa; }
.chip    { width: 20px; height: 20px; font-size: 16px; color: #f2f5fa; }
.wide    { width: 700px; height: 30px; font-size: 16px; color: #f2f5fa; }
.round   { height: 20px; background: #223046; border-radius: 12px; }

ps2ui-layout ui/kitchen.html ui/kitchen.css --fonts fonts/fonts.json --mode ntsc16x9 -o build/kitchen.json

warning: aspect-distortion: 1 rounded corner(s) draw 24% wider than tall at PAR 1.2444; divide the radius by 1.244 to look round
warning: aspect-distortion: 1 image(s) draw 24% wider than tall at PAR 1.2444; pre-squash the art or set an explicit width
warning: min-font-size: "Fine print" is 9px; below 14px is unreadable from a couch
warning: overscan: text "Fine print" at (0,0) leaves the title-safe area; a CRT may crop it
warning: interlace-flicker: 1px line at (0,15) will shimmer on an interlaced CRT; use 2px
warning: ntsc-red-bleed: saturated red fill rgb(224,16,32) at (0,20) smears on composite video
warning: overscan: text "Nearly invisible" at (0,32) leaves the title-safe area; a CRT may crop it
warning: contrast: "Nearly invisible" contrast 1.07:1 < 3:1 — CRTs crush shadows harder than your monitor
warning: overscan: text "設定" at (0,61) leaves the title-safe area; a CRT may crop it
warning: charset: codepoint U+8A2D in "設定": non-Latin text wrapping is untested
warning: overscan: text "OK" at (0,87) leaves the title-safe area; a CRT may crop it
warning: overscan: text "Overhang" at (0,111) leaves the title-safe area; a CRT may crop it
warning: focus-target-size: focusable "chip" is 20x20px; smaller than 24px is hard to see highlighted from 3 meters
warning: overscan: focusable "wide" extends past the action-safe area
ps2ui-layout: 11 paint commands, 2 focusables -> build/kitchen.json

rule	threshold	message	opt-out
aspect-distortion	pixel aspect further than 0.08 from 1.0; counted once per document over rects with a radius and over images	N rounded corner(s) draw P% wider than tall at PAR X; divide the radius by Y to look round, and N image(s) draw P% wider than tall at PAR X; pre-squash the art or set an explicit width. A pixel aspect below 1.0 reads narrower in place of wider	none; change the mode or the display aspect
interlace-flicker	a 1px border, or a filled rect 1px tall	1px line at (x,y) will shimmer on an interlaced CRT; use 2px	none; use 2px
ntsc-red-bleed	a fill with red above 200 and both green and blue below 80	saturated red fill rgb(r,g,b) at (x,y) smears on composite video	none; desaturate the fill
min-font-size	text below 14px, or below the --min-font-size value	"TEXT" is Npx; below Mpx is unreadable from a couch	none; raise the floor
overscan (text)	the text origin inside the 5% title-safe inset, or its bottom past the inset	text "TEXT" at (x,y) leaves the title-safe area; a CRT may crop it	none
overscan (focusable)	the focusable's right or bottom edge past the canvas edge	focusable "NAME" extends past the action-safe area	none
charset	a codepoint above U+24FF outside five allowed blocks; at most one per text run	codepoint U+XXXX in "TEXT": non-Latin text wrapping is untested	none
contrast	a ratio below 3.0 against the composited background	"TEXT" contrast R:1 < 3:1 — CRTs crush shadows harder than your monitor	data-nocontrast
focus-target-size	a focusable narrower or shorter than 24px	focusable "NAME" is WxHpx; smaller than 24px is hard to see highlighted from 3 meters	none

The five blocks charset allows are U+2000-206F, U+2190-21FF, U+2200-22FF, U+25A0-25FF and U+2700-27BF. Face-button glyphs and D-pad arrows live there and stay quiet.

ps2ui-check adds three more, read from the blob rather than the document. They are advisory, like the compiler's rules, and a blob that trips them still exits 0 without --strict.

ps2ui-check examples/memcard/build/ui.uib

...
ok 61 - no 1px quads to shimmer on an interlaced CRT
ok 62 - every command can produce a pixel
ok 63 - every texture is drawn or belongs to a font
...

label	severity	flag
no 1px quads to shimmer on an interlaced CRT	warning	--allow-hairline N
every command can produce a pixel	warning	--allow-dead N
every texture is drawn or belongs to a font	warning	none

Both flags are exact counts, not ceilings. Declaring more instruments than the blob holds is itself a warning, so a deleted test quad cannot pass unnoticed.

ps2ui-check --strict --allow-hairline 1 examples/memcard/build/ui.uib

...
ok 61 - 0 1px quad(s), but 1 declared deliberate (--allow-hairline): 1 of the instruments that count names is gone, and the check can no longer see what it measures # TODO warning
...
FAIL: 63 checks, 0 error(s), 1 warning(s)

Behaviour

Contrast

The rule composites every rect that contains the text's origin, in paint order, and measures the WCAG ratio against the result. Reading the innermost rect alone would score a translucent scrim as though it were opaque.

When transparency survives the whole stack the true backdrop is unknowable at build time. The rule brackets it, measures against black and against white, and reports the worse of the two.

<div class="screen">
  <div class="scrim"><p class="label">Now playing</p></div>
</div>

.screen { flex-direction: column; padding: 40px; }
.scrim  { flex-direction: column; background: rgba(0, 0, 0, 0.6); padding: 12px; }
.label  { font-size: 20px; color: #555555; }

ps2ui-layout ui/scrim.html ui/scrim.css --fonts fonts/fonts.json -o build/scrim.json

warning: contrast: "Now playing" contrast 1.30:1 < 3:1, over a bright frame showing through the 40%-transparent background — CRTs crush shadows harder than your monitor
ps2ui-layout: 2 paint commands, 0 focusables -> build/scrim.json

A node's focused background and its unfocused text never share a frame, so the rule never stacks one under the other. Only matching states composite. Colour forms and translucency are on CSS.

data-nocontrast is the only per-rule opt-out in the compiler. It silences contrast on one element's own text and does not cascade to child elements.

<div class="blk" data-nocontrast>
  <p class="ink">MMMM</p>
</div>

.blk { flex-direction: column; background: #7a5c3e; padding: 20px; }
.ink { color: #7a5c3e; font-size: 16px; }

ps2ui-layout ui/nc-parent.html ui/nc.css --fonts fonts/fonts.json -o build/nc.json

warning: overscan: text "MMMM" at (20,20) leaves the title-safe area; a CRT may crop it
warning: contrast: "MMMM" contrast 1.00:1 < 3:1 — CRTs crush shadows harder than your monitor
ps2ui-layout: 2 paint commands, 0 focusables -> build/nc.json

Move the attribute onto the <p> that holds the text. The contrast line goes and overscan stays.

ps2ui-layout ui/nc-own.html ui/nc.css --fonts fonts/fonts.json -o build/nc.json

warning: overscan: text "MMMM" at (20,20) leaves the title-safe area; a CRT may crop it
ps2ui-layout: 2 paint commands, 0 focusables -> build/nc.json

Strict

--strict counts warnings, not rules. It promotes every warning the compile produced, CSS warnings included, and no rule can be made strict on its own.

--min-font-size PX is the only lint threshold any command line writes. The contrast floor of 3.0, the distortion limit of 0.08 and the 5% safe inset have no flag and no project key.

The canvas flags reach the lints indirectly. The safe inset is 5% of the canvas, so --mode pal moves it, and the distortion rule reads the pixel aspect the mode sets. Modes and aspects are on video modes.

The project key minFontSize forwards to the same flag on ps2ui build.

Per theme

Lints run once over the root row and once over every later theme row. A later row's line carries an @theme <name>: prefix.

contrast and ntsc-red-bleed read colour, so a theme can change their verdict. Those two are reported per row. Every other rule produces the same line in every row and is reported once.

<div class="panel">
  <p class="ink">Now playing</p>
  <p class="fine">5 titles</p>
</div>

:root { --panel: #101623; --ink: #f2f5fa; }
@theme light { --panel: #f4f6fa; --ink: #ffffff; }
.panel { flex-direction: column; width: 400px; background: var(--panel); padding: 40px; }
.ink   { color: var(--ink); font-size: 16px; }
.fine  { color: var(--ink); font-size: 9px; }

ps2ui-layout ui/theme.html ui/theme.css --fonts fonts/fonts.json -o build/theme.json

warning: min-font-size: "5 titles" is 9px; below 14px is unreadable from a couch
warning: @theme light: contrast: "Now playing" contrast 1.08:1 < 3:1 — CRTs crush shadows harder than your monitor
warning: @theme light: contrast: "5 titles" contrast 1.08:1 < 3:1 — CRTs crush shadows harder than your monitor
ps2ui-layout: 3 paint commands, 0 focusables -> build/theme.json

Limits and errors

ps2ui dev and ps2ui-dev honour --strict and --min-font-size the way ps2ui build does. --min-font-size moves the floor, so --min-font-size 8 silences a 9px warning, and --strict fails the rebuild on any warning with ps2ui-dev: --strict: <n> warning(s) and exit 1. Before 0.7.0 both flags were accepted and did nothing.

The example project sets strict: true and minFontSize: 11. The build honours both and reports nothing.

cd examples/opl-env
ps2ui build

ps2ui-layout: 31 paint commands, 7 focusables -> build/landing.json
ps2ui-layout: 84 paint commands, 17 focusables -> build/library.json
...

The watch loop forwards the same two settings and prints 44 warnings measured against the 14px default.

ps2ui dev --screen library --once

built in 486ms — 84 commands, 17 focusables, 44 warnings -> build/dev/preview.png
  warning: min-font-size: "Title of a Game 1" is 13px; below 14px is unreadable from a couch
...

Three further limits change what a rule reports.

• The focusable form of overscan names the action-safe area and tests the canvas edge. A focusable 640px wide on a 640x448 canvas passes, and 641px warns.
• The Safe area overlay in ps2ui serve draws a 10% inset. The overscan rule uses 5%, so the overlay is not the rectangle the rule enforces.
• A warning listed in ps2ui serve carries a screen name and no command index. Clicking it switches screen when the warning belongs to another one, and never selects a command.

Every message this page shows, with its cause and its fix, is indexed on diagnostics.
