memcard¶

Screenshots¶

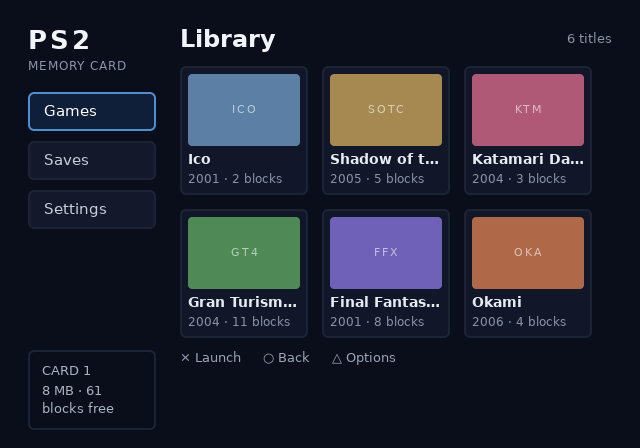

memcard library screen, root theme, 4:3, initial focus on Games: six tiles in a grid and the count slot reading 6 titles

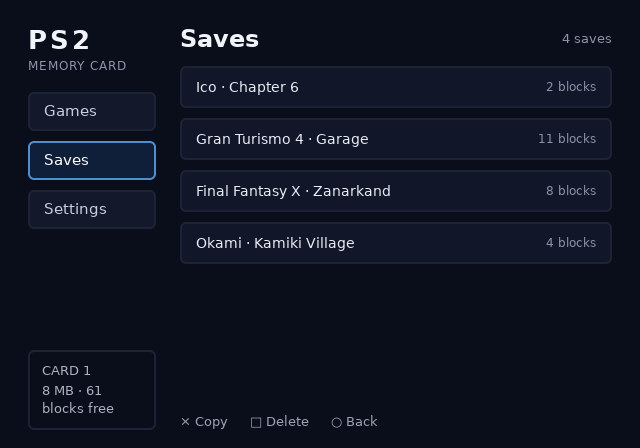

memcard saves screen, root theme, 4:3, initial focus on Saves: four save rows and the save-count slot reading 4 saves

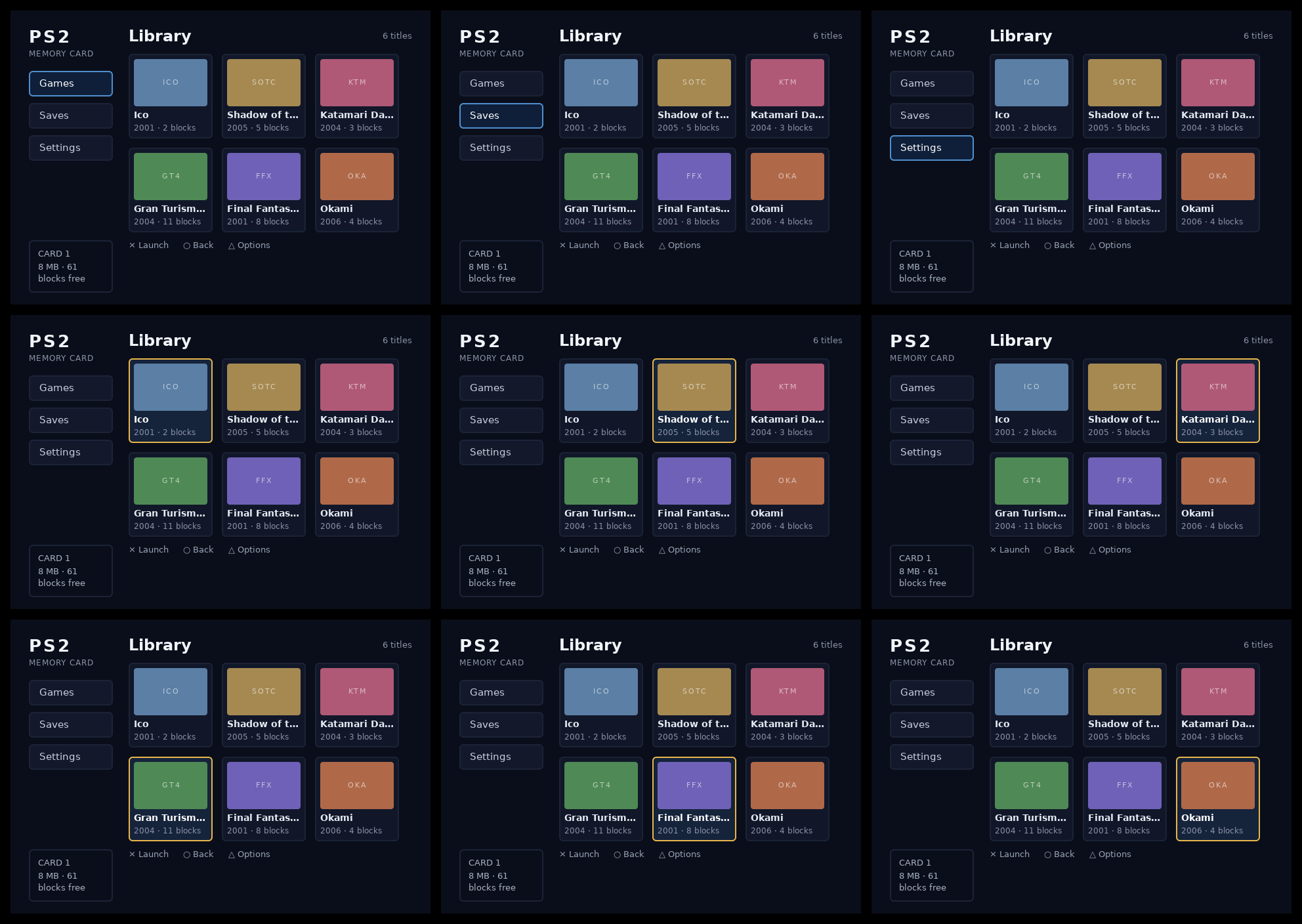

memcard library screen montage, root theme, 4:3, all nine focus states, three columns by three rows

What it demonstrates¶

memcard is a PS2 memory-card browser: a Library screen of six game tiles and a Saves screen of four save rows, both reached from the same sidebar. It is the smallest project in this tree that still exercises focus, dynamic text and a shared stylesheet across screens.

mechanism	where
One project file compiles two screens against one shared stylesheet	ps2ui.json
`focusable` plus `autofocus` sets the initial focus per screen	library.html, saves.html
`:focus` changes only fill and border colour; geometry never does	library.css
`data-slot` with `data-slot-capacity` for runtime-editable counts and titles	library.html, saves.html
`white-space: nowrap` plus `text-overflow: ellipsis` truncates long titles	library.css
`preview.render` per screen and `preview.montage` for one sheet of every focus state	build.sh

The project file names two screens, sets no mode, canvas or focusWrap, and leaves every one of those keys at the baker's default. Read the full key table on the project file.

Build and check¶

Run the example's own script from the repository root:

./examples/memcard/build.sh

The script compiles both screens, bakes them into one blob, runs make -C runtime test against the fresh blob, then re-renders the three committed screenshots from it. Its last lines:

1..410
PASS: 410 checks, 0 failure(s)
make: Leaving directory '/home/user/OPHTML/runtime'
ps2ui-bake: screenshots -> ./examples/memcard/screenshots/
memcard example: ./examples/memcard/build/ui.uib

The screenshots the run just wrote match the ones already committed:

$ git diff --exit-code examples/memcard/screenshots; echo "diff exit: $?"
diff exit: 0

Validate the blob directly with ps2ui-check:

$ ps2ui-check examples/memcard/build/ui.uib
...
1..63
# examples/memcard/build/ui.uib: 640x448 at 4:3, 2 screen(s), 1062 commands, 11 textures, 6 slots
PASS: 63 checks, 0 error(s), 0 warning(s)

tools/check-blobs.sh runs this same check with --strict and no other flag, so a warning here is a CI failure:

    examples/memcard/build/ui.uib)
        echo "--strict" ;;

CI builds and checks this blob in the step named "Example builds end to end (includes runtime tests)", which is ./examples/memcard/build.sh and nothing else (ci.yml).

Numbers from the blob¶

Taken from the ps2ui-check trailer and arena note above, and from the budget line ps2ui-bake prints while baking. The arena figure is blob-specific: every project's arena is a different size, and only a bake or a check run in the same session proves what this one needs. See the arena note for why the EE and host figures differ.

field	value
canvas	640x448 at 4:3
screens	2
commands	1062
textures	11
CLUTs	1
slots	6
arena, EE	1662 bytes
arena, 64-bit host	1750 bytes
VRAM used	160 KiB of 736 KiB budget (21%)

make -C runtime test runs its 410-check main suite and its 5-check narrow suite over this same blob, both listed as prerequisites of test but the narrow suite's line prints last:

PASS: 5 checks, 0 failure(s)
...
PASS: 410 checks, 0 failure(s)

Source tour¶

ps2ui.json - the whole project: two screens, one stylesheet, a preview path and a montage path.
ui/library.html - the Library screen: six focusable tiles, an autofocus nav button and a count slot.
ui/saves.html - the Saves screen: four save rows, each with its own save-N slot capped at 31 bytes.
ui/library.css - the shared stylesheet both screens compile against, including the :focus deltas and the comment on why focus never moves anything.
build.sh - what is genuinely this example's: the runtime test run and the screenshot refresh, since the build itself lives in ps2ui.json.

Start from this¶

Copy the project file shape (two screens sharing one stylesheet, a preview and a montage path), the :focus colour-only pattern, and the slot markup for a count or a title that changes at runtime. Replace the tile grid and save rows with your own screens and slot names.

memcard uses none of the following, so add them only if the new project needs them:

Overlay screens, covered in screens and overlays.
More than one theme, covered in theming.
Streamed textures instead of baked ones, covered in streaming art.
Repeated rows from one template, covered in lists. memcard writes six tiles and four rows out by hand because the count never changes at runtime; a list with a scrolling window is the next step past that.

After the blob passes ps2ui-check, the first-boot checklist is what takes it from a host build to a console frame.
