Previewer

ps2ui serve builds the project, binds a port on 127.0.0.1, and serves one page. The page shows the blob a console would load and posts every input back to the server. Reach for it once the first frame looks right and the questions become harder: where the D-pad goes, what the second screen holds, how a longer string sits in a slot.

The browser draws no UI pixels. Every frame comes from preview.render on the server and arrives as PNG bytes in an <img>. The grid, the focus rectangles and the title-safe box are chrome drawn over the top.

Synopsis

ps2ui serve [project] [--uib BLOB] [--port PORT] [--screen NAME]
            [--theme THEME] [--console] [--no-watch] [--selftest]

serve is a subcommand of ps2ui. No ps2ui-serve command is installed.

The project positional defaults to ps2ui.json, and a directory means the project file inside it. Paths print relative to that file, as they do for every other subcommand.

Options

flag	argument	default	effect
(positional)	project	ps2ui.json	the project to build, serve and watch
--uib	BLOB	none	serve a pre-baked blob: no project, no Node, no watching
--port	PORT	8080, walking up to 8099	bind this port once, and say which port is busy and fail
--screen	NAME	the blob's first screen	open on this screen
--theme	THEME	0	open on this theme row
--console	none	off	New in 0.10.0: fill the theme with the console's mock games; up and down walk its game-N list as ophtml.elf does
--no-watch	none	off	serve the first build and never rebuild
--selftest	none	off	fetch every route on an ephemeral port, assert the frame, exit

$ ps2ui serve --help
usage: ps2ui serve [-h] [--uib BLOB] [--port PORT] [--screen NAME]
                   [--theme THEME] [--console] [--no-watch] [--selftest]
                   [project]

positional arguments:
  project

options:
  -h, --help     show this help message and exit
  --uib BLOB     serve a pre-baked blob: no Node, no watching
  --port PORT    the default 8080 moves up when busy; a port named here is
                 used or the command fails
  --screen NAME  the screen to open
  --theme THEME  the theme row
  --console      fill the theme with the OPHTML console's mock games, and
                 drive its game-N list the way the console does
  --no-watch     do not rebuild on edits
  --selftest     build, serve one of every route, and exit

Everything else comes from the project file. Canvas, mode, display aspect, fonts and the VRAM budget reach the server through the same call ps2ui build makes, so a key that changes the build changes the preview.

--screen and --theme are checked against the blob before the port is bound.

$ ps2ui serve --uib build/serve/ui.uib --screen nope --selftest
ps2ui serve: no screen named 'nope'. The blob has: library, saves
$ ps2ui serve --uib build/serve/ui.uib --theme 3 --selftest
ps2ui serve: no theme 3; the blob has 1

--uib skips the build. It needs no project file and no Node, which makes the same page an inspector for any .uib, including one this toolchain did not bake. Pair it with ps2ui-check: check the blob, then look at what passed.

$ env -i PATH=/usr/local/bin:/usr/bin:/bin ps2ui serve --uib build/serve/ui.uib --selftest
ok - / 29569 bytes
ok - /frame.png 51449 bytes
ok - /state 88379 bytes
ok - /rev 15 bytes
ok - an unknown route is 404
ok - the framebuffer frame is byte-identical to --preview
PASS: 6 route(s)

A blob served this way carries no warnings, because warnings come from the IR the compiler wrote, and --uib runs no compiler.

Output

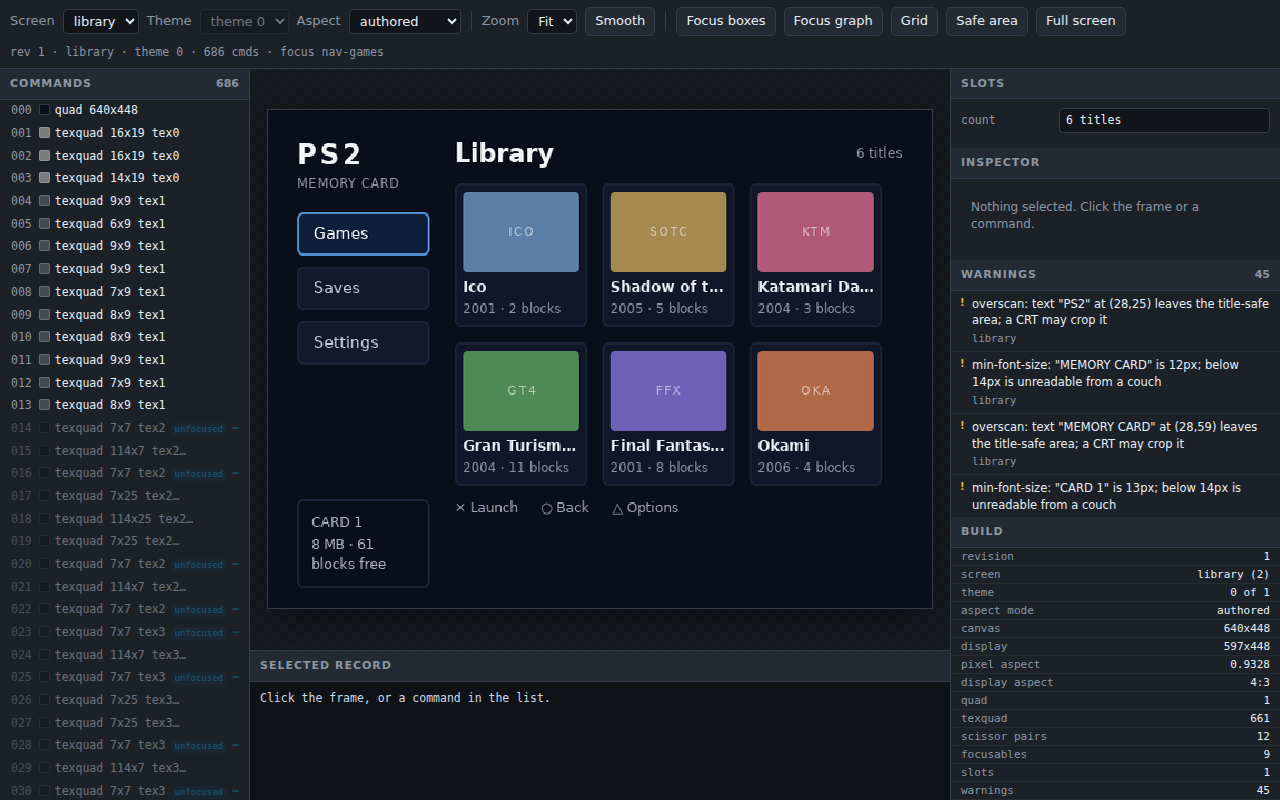

The page

control	drives
arrow keys	{"key": dir}, one ps2ui_move along the baked focus graph
Screen menu, [ and ]	{"screen": name}, the switch ps2ui_screen_set makes
Theme menu	{"theme": n}, the tint-table row; disabled below two themes
Aspect menu	{"aspect": mode}, one of the four resamplings below
a slot's text box	{"slot": {name: text}}, the host mirror of ps2ui_slot_set
Zoom menu	client-side scale: Fit, 1x, 2x, 3x
Smooth	client-side upscaling filter, nearest-neighbour by default
Focus boxes, b	one magenta rectangle per focusable
Focus graph, n	one arrow per solved D-pad edge
Grid, g	an 8 px lattice
Safe area, s	a dashed 10 percent inset
Full screen, f, Esc to leave	hides the toolbar and both panels
clicking the frame	selects the topmost command drawn there
clicking a command row	selects that command
clicking a focusable row	walks the D-pad to that node

Focus moves by arrow key and by nothing else, which is the console's rule. /input has no set-focus verb, so clicking a focusable walks the published graph and posts those arrows. A node with no path from the current one says so in the status line instead of jumping.

The Theme menu is the browser view of the tint table. One row is one theme, and switching rows moves no geometry, as described under theming.

A slot box carries the slot's baked capacity as its maxLength. On the memcard library screen the count box reports maxLength 15, and typing THE LONGEST TITLE THAT FITS AND MORE leaves THE LONGEST TIT. That counts UTF-16 units against a byte capacity, so the two agree for ASCII only. The capacity rules are under dynamic text.

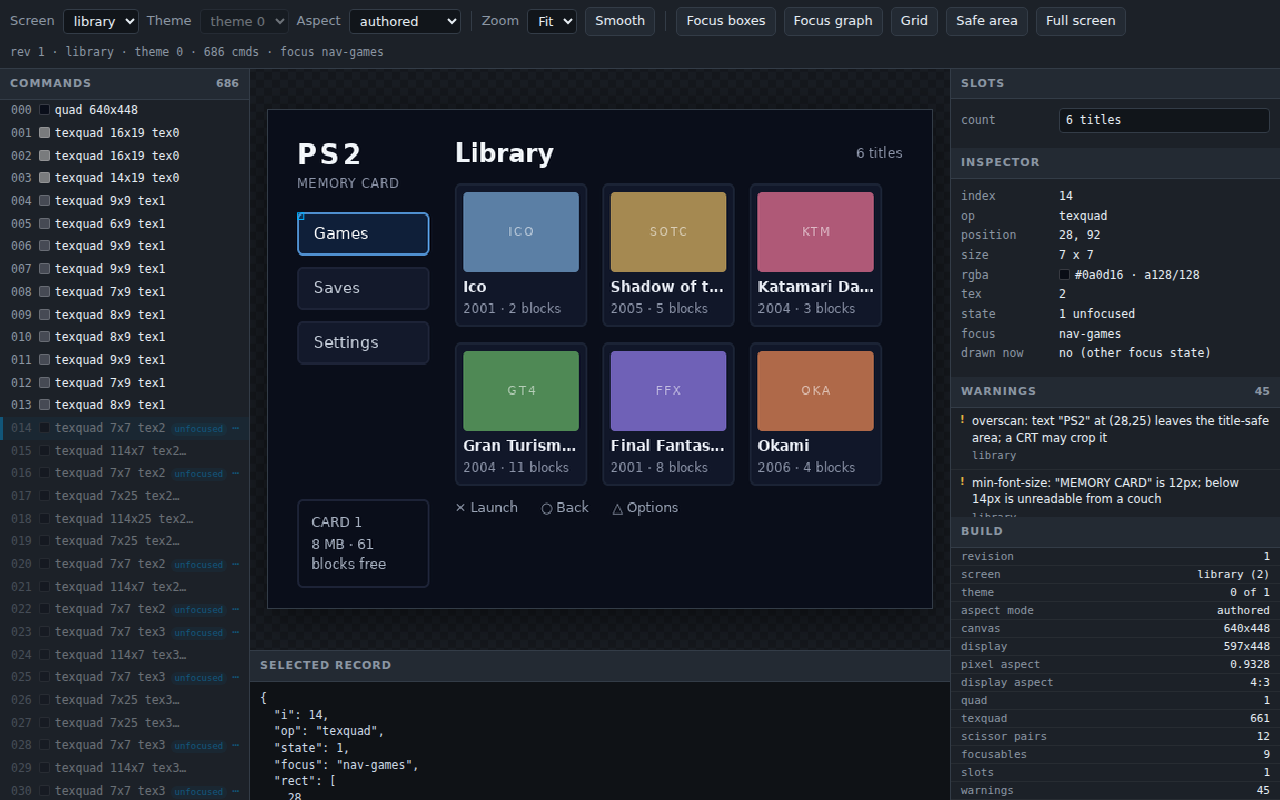

The inspector

Clicking the frame hit-tests front to back and selects the topmost command drawn at that point. A row in the Commands list selects the same record.

The Inspector reads alpha in the GS domain, 0 to 128, so a fully opaque command shows a128/128. drawn now answers whether this record draws in the current focus state. The Selected record pane below the frame holds the same command as raw JSON.

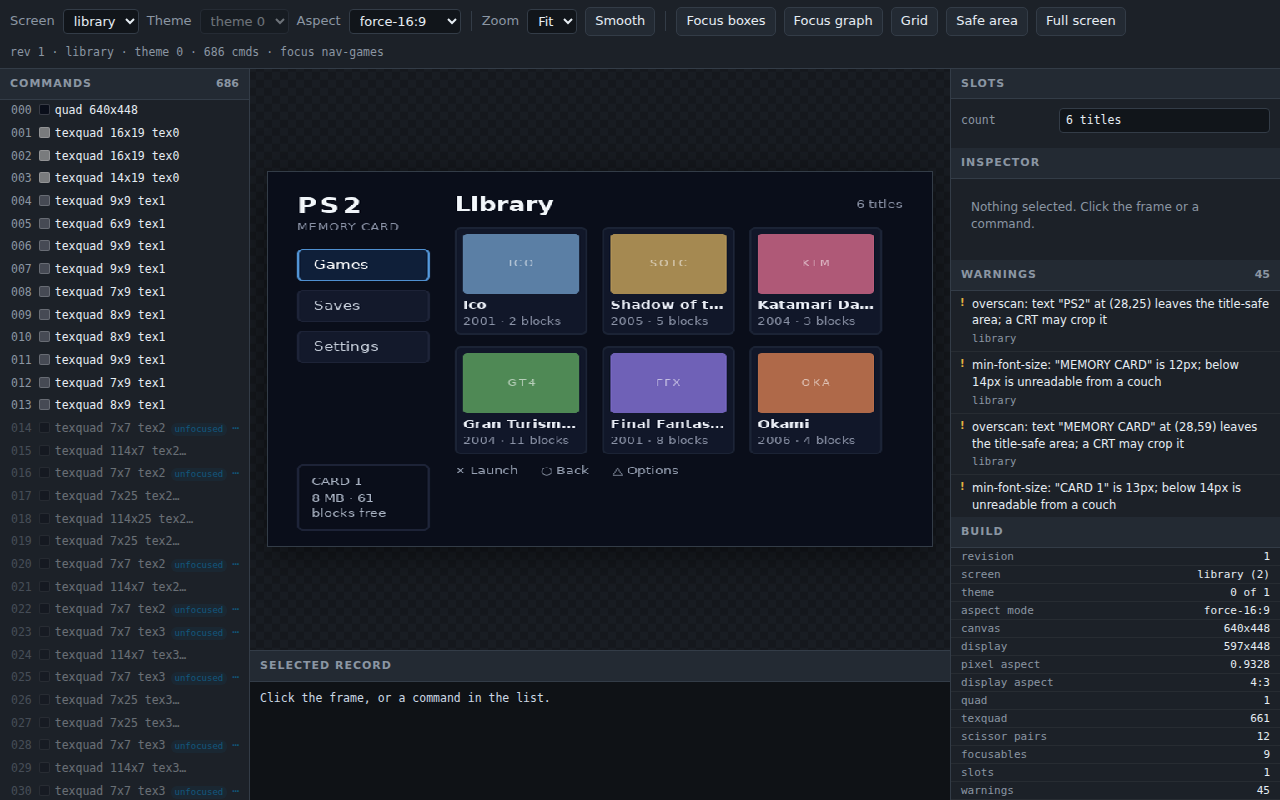

Aspect

Four modes resample one framebuffer. authored is the default and runs the frame through the blob's own display aspect. framebuffer is the 1:1 render, byte-identical to what --preview writes.

So the page and build/preview.png are different sizes on purpose: a 4:3 blob is 640x448 in the file and 597x448 on screen, and the difference is the pixel aspect the television applies rather than anything the toolchain disagrees with itself about. The self-test compares the framebuffer frame and its line says so.

force-4:3 and force-16:9 put the UI on a set the header did not ask for. That pair is the reason the menu exists, since every other artifact the toolchain writes is already at the aspect requested. See video modes.

Warnings

The Warnings panel lists what the compiler reported, one entry per screen and message. Clicking an entry from another screen switches to it. An entry never selects a command, because the server publishes a screen name and no command index. That limit is on the CRT linter page.

Routes

route	method	type	purpose
/	GET	text/html; charset=utf-8	the previewer page
/frame.png	GET	image/png	the current state, rendered by preview.render
/montage.png	GET	image/png	one tile per focusable of the current screen
/state	GET	application/json	the whole payload the page draws from
/rev	GET	application/json	{"revision": N}, the poll target
/input	POST	application/json	one state change, answered with /state
anything else	GET or POST	application/json	{"error": "no route '/x'"}

Every response carries Cache-Control: no-store. A server started with --port 8501 on a copy of examples/memcard answered:

$ for r in / /frame.png /montage.png /state /rev /nope; do
>   curl -s -o /dev/null -w "%{http_code} %{content_type}  $r\n" "http://127.0.0.1:8501$r"
> done
200 text/html; charset=utf-8  /
200 image/png  /frame.png
200 image/png  /montage.png
200 application/json  /state
200 application/json  /rev
404 application/json  /nope

/state holds 16 keys: revision, error, screens, screen, themes, theme, aspect, aspects, canvas, display, display_aspect, focus, focusables, commands, slots and warnings. focusables, commands and slots cover the screen in view and nothing else, because focus and slot names are unique within a screen only. warnings covers every screen and names each.

/input takes one field per request. Anything it does not recognise is 400. A rejected screen or theme comes back as the bare offending value.

$ curl -s -X POST -d '{"nonsense":1}' -w '  <- %{http_code}\n' http://127.0.0.1:8501/input
{"error": "\"no recognised field in ['nonsense']\""}  <- 400
$ curl -s -X POST -d '{"screen":"nope"}' -w '  <- %{http_code}\n' http://127.0.0.1:8501/input
{"error": "'nope'"}  <- 400
$ curl -s -X POST -d '{"theme":9}' -w '  <- %{http_code}\n' http://127.0.0.1:8501/input
{"error": "9"}  <- 400

The page polls /rev every 250 ms and refetches /state only when the number moved. When a poll fails it greys the frame, says the server stopped, and keeps polling.

Watching

The watcher stats the project file, every screen's HTML and CSS, and every .html, .css and .png under each screen's directory. It polls at 0.2 s and waits 0.12 s for an editor's save burst to settle before rebuilding.

A failed build never takes the frame away. The last good blob stays on screen and the build's message appears in a banner above it.

$ printf '\n.tile { background: #12g4f6; }\n' >> ui/library.css
$ curl -s http://127.0.0.1:8501/state | python3 -c "import json,sys;d=json.load(sys.stdin);print('revision',d['revision']);print('error:');print(d['error']);print('commands',len(d['commands']))"
revision 2
error:
ps2ui-layout failed on ui/library.html (exit 1)

commands 686

The banner carries that summary line only. The compiler's diagnostic, the one naming the file and the line, goes to the terminal the server was started from. Read both. Restoring the file rebuilds and clears the banner.

--no-watch serves the first build and stops there. It prints one extra line.

$ ps2ui serve --port 8502 --no-watch
...
ps2ui serve: http://127.0.0.1:8502/ -- ctrl-c to stop
  (not watching)

Ports

With no --port the server takes 8080 and walks up to 8099, one port at a time. It says which it took. Two servers started in a row on the same machine:

$ ps2ui serve --uib build/serve/ui.uib
ps2ui serve: http://127.0.0.1:8080/ -- ctrl-c to stop
$ ps2ui serve --uib build/serve/ui.uib
ps2ui serve: http://127.0.0.1:8081/ -- ctrl-c to stop

An explicit --port is tried once and fails hard when it is busy, because a person who named a port meant that port. It says so rather than printing the bind error:

$ ps2ui serve --uib build/serve/ui.uib --port 8081
ps2ui serve: port 8081 is already in use.
  An explicit --port is not moved: naming a port means that port.
  Drop --port to take 8080 and move up from there, or name a free one.
$ echo $?
1

The bind address is 127.0.0.1 and never anything else. This is an unauthenticated development tool.

The self-test

--selftest builds, binds an ephemeral port, fetches one of every route, and asserts the served frame is byte-identical to what --preview writes. It ignores --port. Run it from CI, or run it when the page looks wrong and the question is which half is lying.

$ ps2ui serve --selftest
...
ok - / 29569 bytes
ok - /frame.png 51449 bytes
ok - /state 93517 bytes
ok - /rev 15 bytes
ok - an unknown route is 404
ok - the framebuffer frame is byte-identical to --preview
PASS: 6 route(s)

Limits

cannot show	why
ps2ui_visible_set and the list window	the renderer takes no visibility parameter, so the page draws the baked state
a hardware fault the command list is innocent of	the previewer replays that list faithfully; F-048 lived in a GS register the runtime never writes
two screens composited in one frame	the renderer takes one screen, and /state publishes one screen's records
a streamed texture's pixels	the server supplies no texels, so a streamed slot draws nothing
the rectangle the overscan lint enforces	the Safe area overlay insets 10 percent and the lint tests 5 percent
which command a warning is about	a warning carries a screen name and no command index

Visibility is the boundary worth knowing before it surprises you: a hidden node looks focusable here and is not on the console. What the runtime does with it is on moving and hiding. Hardware faults stay a bench job, and the checklist is first boot.

Exit codes

code	meaning
0	the server ran and was stopped with Ctrl-C, or --selftest passed
1	a refusal, printed as ps2ui serve: <message>
2	argparse rejected the command line

The ps2ui serve: prefix is the exception in this tool. Every other subcommand prints ps2ui:.

Files written

path	when	contents
<build>/serve/<screen>.json	project mode, every build	the IR for one screen
<build>/serve/ui.uib	project mode, every build	the blob the page replays
nothing	--uib	the blob is read, never written

Output goes under build/serve/ so that a ps2ui build in another terminal and a live server cannot clobber each other. The server writes no PNG, since it renders its own frames.

$ find build -type f | sort
build/serve/library.json
build/serve/saves.json
build/serve/ui.uib
